Your location: Home > Hammer crusher

Products

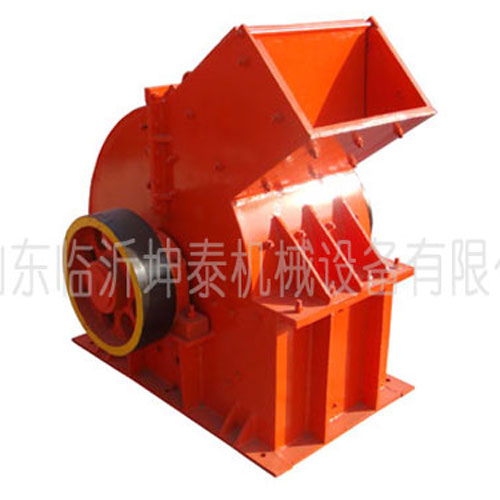

Product Name:Hammer crusher

Product Description

Hammer crusher is introduced
Hammer crusher are less investment, quick effect of choice for small sand production line equipment. Hammer crusher is directly to the largest size is 600-1800 mm material crushing to 25 or a broken under 25 mm with crusher. Hammer crusher is applicable to the cement, chemical, electric power, metallurgy and other industrial sectors crushing medium hardness materials, such as limestone, slag, coke, coal and other materials in the broken and finely homework.
The working principle of the hammer crusher
Hammer crusher for main working parts with a hammer, hammer head) of the rotor. The rotor consists of main shaft, hammer of disk, pin shaft and hammer head. Hammer crusher is mainly completed by impact energy and broken material operation. Hammer crusher is working, the motor drives the rotor high-speed rotation, the material into the crusher chamber evenly and high-speed rotary hammer impact, cut apart the material to the material being broken, at the same time, the material's own gravity makes material from the high-speed rotating hammer head to the body panel, sieve, resistance is greater than the screen hole size of materials on the sieve plate continues to hit by the hammer and the grinding, crushing to the discharging granularity until the final through the sieve plate outside.
Hammer crusher product parameters:

規(guī)格型號	最大進料邊長（mm）	出料粒度（mm）	處理能力（t/h）	電機功率（kw）	外形尺寸（mm）	重量（t）
PC0808	400	≤40	30-50	45	151817101600	4
PC0810	500	≤40	60-90	75	191818501904	5.1
PC1010	600	≤40	80-120	90-110	197820892022	5.3
PC1210	600	≤40	90-150	110-132	197822602057	6.8
PC1312	700	≤40	120-180	132-160	207223222217	8.5
PC1513	700	≤40	130-250	160-180	223625962340	12.5
PC1515	800	≤70	180-350	220-250	261227802861	19
PC1815	800	≤70	200-400	250-280	280828783080	24
PC1817	900	≤70	280-480	2*160	302232003168	28
PC2018	900	≤70	350-550	2*220	322234003368	37
PC2022	1000	≤70	400-600	2*315	362235003768	130

Tags: hammer crusher, the secondary crusher
